Innovation leader in insulation systems for fittings and valves
Energy efficiency is our mission
We have been developing and producing insulation for the building services sector for over 30 years. Here you will find insulation for heating fittings and heat exchangers and a large area for station and system construction.
Insulation for the cold water and refrigeration sector
The perfect insulation for plate heat exchangers
Precisely fitting insulation for flanged and socket valves
The cost-effective insulation for socket fittings
CURRENT NEW DEVELOPMENT – SOON IN THE RANGE: THE ES-BOX COOL

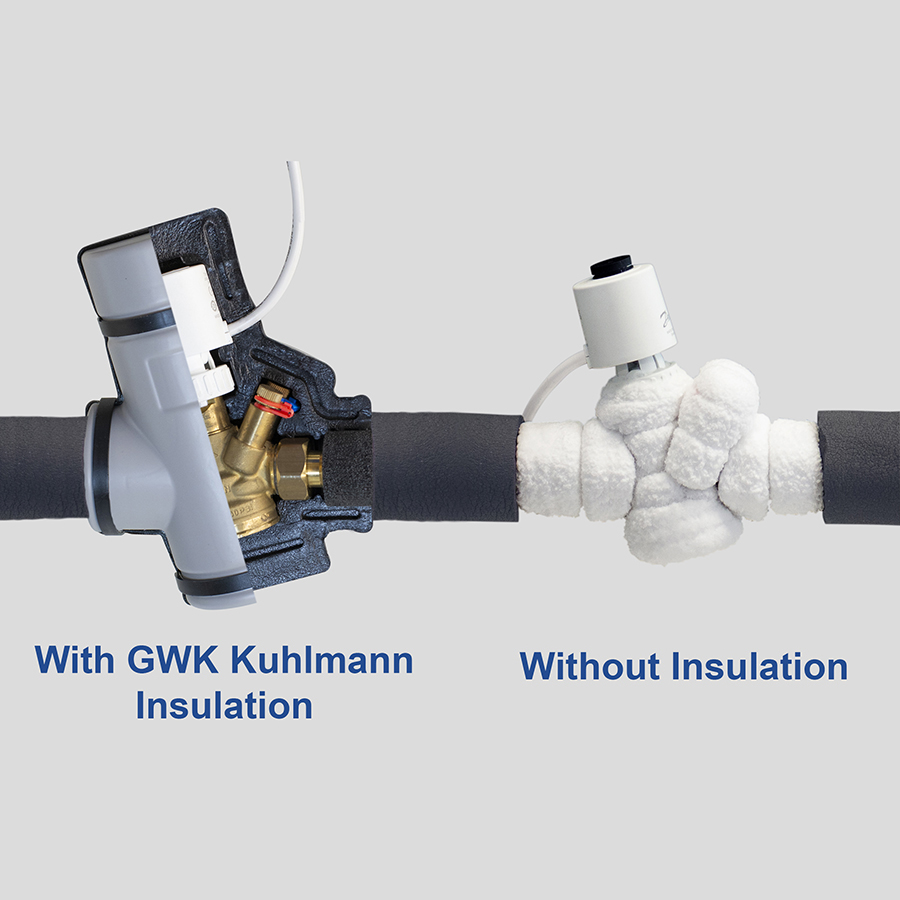

The first precisely fitting fitting insulation for cold water and cooling applications that is reusable and does not need to be glued. Installation is just as quick and easy as with other GWK Kuhlmann products.
The advantages of the ES-Box COOL insulation box
- diffusion-tight
- removable
- Installation without tools or glue
- Tested combination of fitting and insulation box
For the product launch, we are starting with an ES-Box COOL for balancing valves and various ball valves. Angle seat valves and strainers will follow.
Measuring heat loss
Did you know that …
… it is not so easy to determine the heat loss of a heating fitting?
In short, it is simply not possible to calculate the heat loss using a formula. Too many parameters would have to be taken into account. The size and nature of the surface of the valve, convection and turbulence, vertical or horizontal installation… For this reason, we do not calculate the loss, we measure it. The specially developed measuring device takes all parameters into account and makes it possible to measure the energy-saving potential of fitting insulation.
The room with your heating system will probably have a light and a light switch. After all, permanently lighting a room that you are not currently in would be a waste of energy. In a way, your heating valves also have a light switch. A DN20 socket angle seat valve loses up to 30 watts at a ∆T of 55°. With a suitable EPP box, this loss can be reduced to 5 watts. Simply “switch off” your heat loss!
The potential energy cost savings per GWK EPP box:
| ENERGY COSTS – Price per kWh (as of 01/2023) | |||||
| Fitting | Period | 0.11 €* Heating type heat pump | 0.15 € Heating type pellet heating | 0.16 € Heating type oil heating | 0.20 € Heating type gas heating |
| Angled seat DN 20 | per heating period** | 4,28 € | 5,83 € | 6,22 € | 7,78 € |
| per year *** | 8,55 € | 11,66 € | 12,44 € | 15,55 € | |
| Angled seat DN 25 | per heating period** | 5,23 € | 7,13 € | 7,60 € | 9,50 € |
| per year *** | 10,45 € | 14,26 € | 15,21 € | 19,01 € | |
| Angled seat DN 50 | per heating period** | 11,88 € | 16,20 € | 17,28 € | 21,60 € |
| per year *** | 23,76 € | 32,40 € | 34,56 € | 43,20 € | |
| Ball valve DN 20 | per heating period** | 2,38 € | 3,24 € | 3,46 € | 4,32 € |
| per year *** | 4,75 € | 6,48 € | 6,91 € | 8,64 € | |
| Ball valve DN 25 | per heating period** | 3,33 € | 4,54 € | 4,84 € | 6,05 € |
| per year *** | 6,65 € | 9,07 € | 9,68 € | 12,10 € | |
* Electricity tariff at 42 ct/kWh with 25% heat output from electricity
** Heating period corresponds to 6 months = 3000 operating hours
*** Year corresponds to 12 months = 6000 operating hours
Our products are available! Talk to your trusted dealer:
